Huzhou Jiafu Macromolecular Khoom Co., Ltd. Txais tos rau cov lag luam wholesale bulk siab - qib khawb resistant txheej rau muag ntawm no los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.
Cov ntaub ntawv tseem ceeb
1. Khoom Taw Qhia
Scratch resistant txheej yog ib qho kev ua haujlwm ultraviolet (UV) txheej txheej nrog siab elasticity. Nws qhov txiaj ntsig tseem ceeb yog nyob rau hauv kev sib xyaw ua ke ntawm kev kho sai thiab zoo elasticity. Cov txheej no muab cov plag tsev nrog kev ua haujlwm zoo dua thiab muaj kev xav zoo tactile, thaum tseem ua raws li kev tiv thaiv ib puag ncig.
2. Core Value Proposition
- daws teeb meem siab -ntau zaus khawb: Cov txheej txheem UV txheej tsis muaj khawb tsis txaus, ua rau PVC flooring tau yooj yim khawb los ntawm cov khoom ntse, cuam tshuam rau cov tsos thiab nce nqi kho.
- Cov yam ntxwv tseem ceeb: High-elasticity formula + 470–780 mJ/cm² siab- zog kho; khawb tsis kam Ntau dua lossis sib npaug li 2500 g; khawb-kos tus nqi rov qab zoo dua los ntawm 60%.
- Kev lees paub ntxiv: Tsawg-VOC eco- tus phooj ywg mis, 6-8℃matte tiav, qib-0 adhesion, haum rau ntau lawm ntawm PVC substrates.
Core Zoontawm khawb resistant txheej
1. Ultra- khawb- cov thev naus laus zis thev naus laus zis
- High-elasticity khawb- cov tshuaj tiv thaiv: Incorporates elastic resins thiab hnav- cov khoom ua kom tsis muaj zog, tso cai rau cov txheej txheem kom rov zoo dua tom qab khawb. Ua tiav ntau dua lossis sib npaug li 2500 g khawb tiv thaiv, tsis zoo li siab - tawv tab sis tsis yog - txheej txheej elastic.
- Precise zog curing: Dual{0}}theem curing nrog 97–197 mJ / cm² rau cov primer thiab 470–780 mJ / cm² rau topcoat, tsim ib tug "elastic + hnav-resistant" dual tiv thaiv txheej kom tsis txhob brittleness thiab cracking.
- PVC substrate compatibility: Optimized adhesion tshwj xeeb rau PVC flooring; ua tiav qib -0 hla- txiav adhesion (GB/T 9286-1998), daws teeb meem PVC txheej txheej-tev.
2. High -ntau zaus khawb scenario adaptability

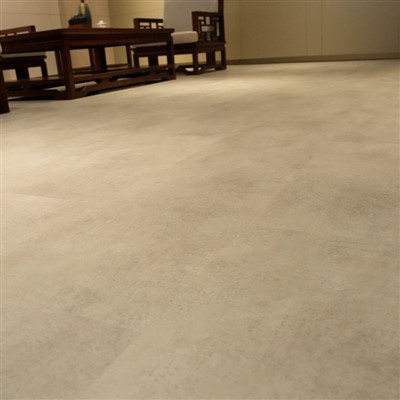

- Lub hom phiaj daim ntawv thov: Cov khw hauv khw hauv tsev, cov tsev kawm ntawv txoj hauv kev, cov chaw ua si menyuam yaus, thaj chaw ua haujlwm - cov xwm txheej uas nquag sib cuag nrog cov khoom ntse.

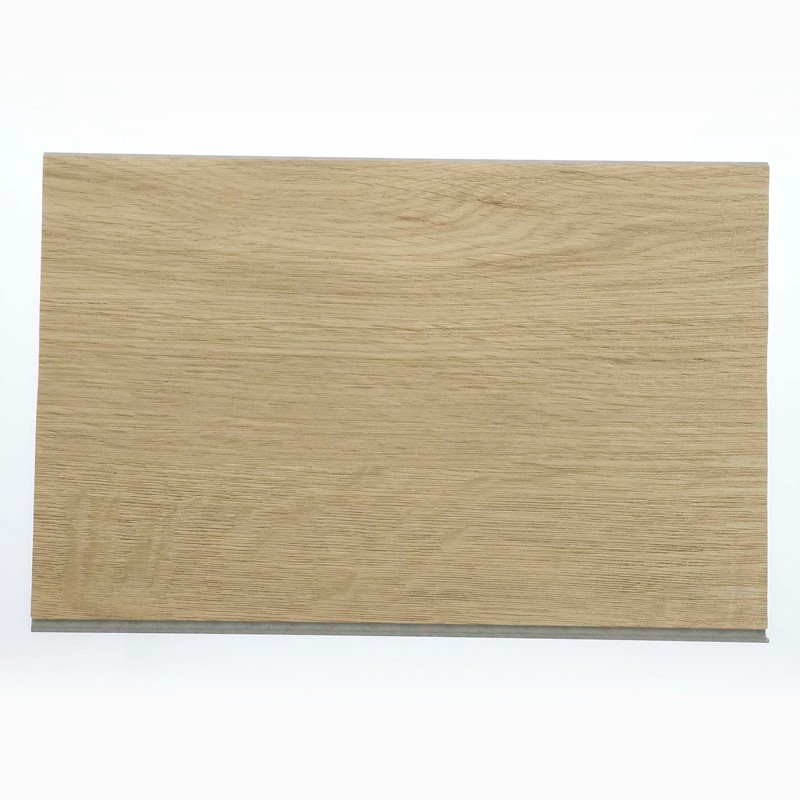

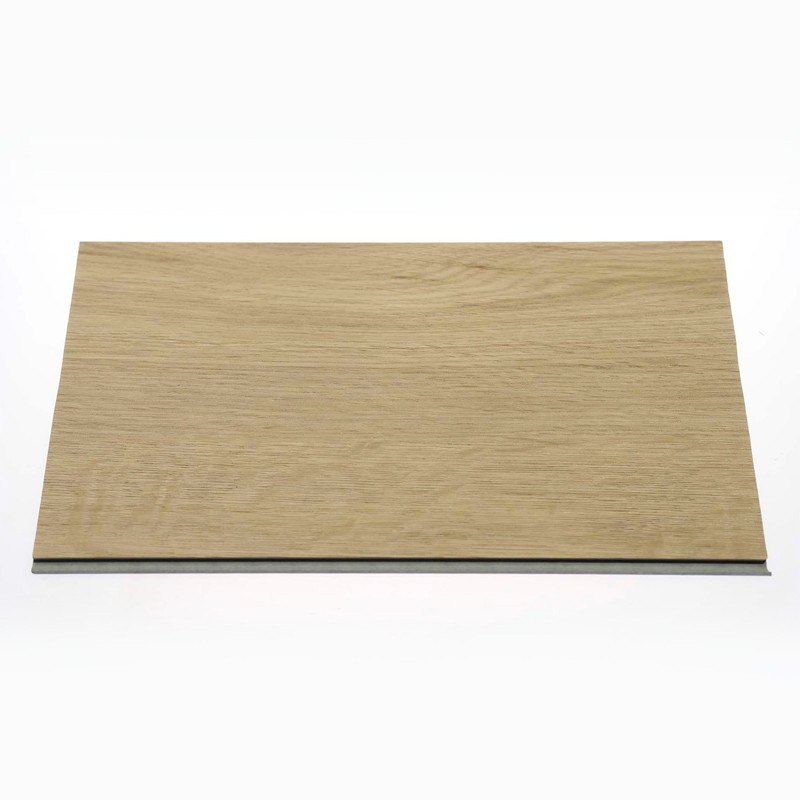

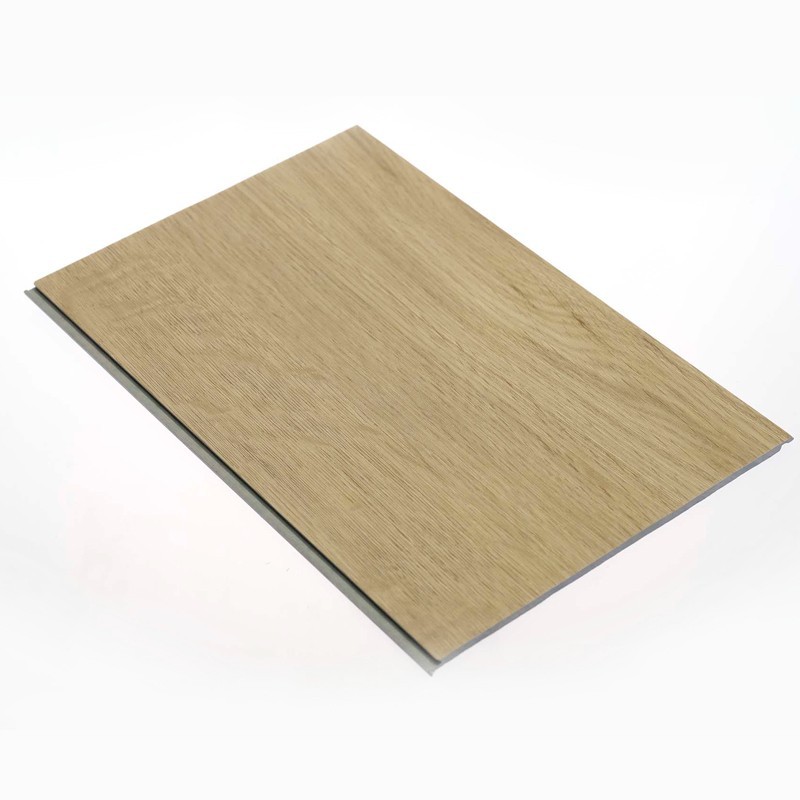

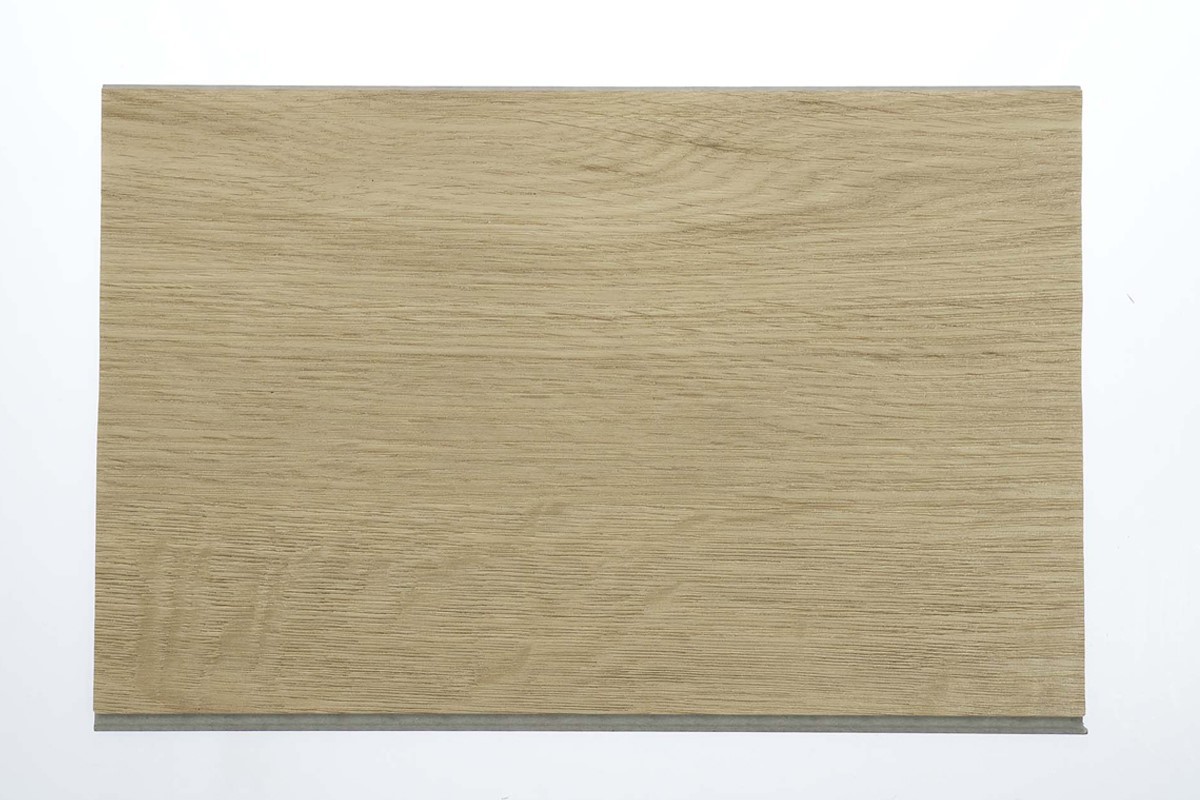

- Tau tshaj substrates: PVC flooring (khoom xim / textured), tsom rau cov khoom siv hauv pem teb uas muaj zog khawb - cov kev cai tiv thaiv.
- Kev tsim kho kom zoo: Lub caij ntuj no infrared preheating ntawm 135-180℃(20 vib nas this); 6-8 g primer + 7-9 g topcoat daim ntawv thov; haum rau kev sib dhos- kab ntau lawm.
3. DurablethiabKev Kho Kom Zoo
- Tus nqi qis dua: Tus nqi khawb tau txo los ntawm 15% mus rau 3%, txuag 80,000 RMB ib 10,000 m² hauv ib nrab xyoo- cov nqi kho dua tshiab.
- Ntev-lub sij hawm ruaj khov: 1000-teev xenon-arc aging test (daj qib 3.5–4); khawb kuj qhia tias tsis muaj degradation, ncua txheej txheej lifespan mus txog 8 xyoo.
- Kev ua raws li ib puag ncig: Tsawg-VOC, hnyav- evaporation dawb; ua raws li REACH / RoHS thiab tsim nyog rau kev lees txais ib puag ncig hauv cov chaw pej xeem sab hauv.
Kev tsim kho txheej txheem
|
Sua tep |
Cov ntsiab lus tsim kho |
Curing zog / Cov ntsiab lus tseem ceeb |
Lub hom phiaj sib txawv |
|
1 |
Substrate Pre-kev kho mob |
- Ntxuav cov roj thiab hmoov av; xyuas kom qhuav, impurity -dawb substrate |
Ua kom adhesion ntawm PVC substrates thiab tiv thaiv txheej txheej thaum khawb |
|
2 |
Lub caij ntuj no Substrate Pre- cua sov |
- Infrared cua sov 19-29 s, 135-180 degree |
Hais txog PVC qis- teeb meem kev tsim kho kub thiab txhim kho kev kho kom zoo |
|
3 |
Yob- txheej PVC Matte Primer JF-PVC2001 |
- Daim ntawv thov nyiaj 6-8 g |
Elastic primer txheej ua lub hauv paus rau khawb tsis kam |
|
4 |
Primer Curing |
Lub zog 97-197 mJ / cm², lub zog 196-296 mW / cm² |
Tsawg-zog semi- kho kom ruaj khov elasticity |
|
5 |
Yob- txheej Scratch-resistant Topcoat JF-PVC8008 |
- Daim ntawv thov nyiaj 7-9 g |
Qhov kawg functional txheej muab khawb kuj |
|
6 |
Lub caij ntuj no Topcoat Leveling |
- Infrared cua sov 100-158 degree |
Tiv thaiv sagging ntawm qhov kub thiab txias thiab ua kom cov yeeb yaj kiab tsis sib xws |
|
7 |
Topcoat Curing |
Lub zog 470-780 mJ / cm², lub zog 480-790 mW / cm² |
Siab -lub zog tag nrho kho kom ua kom khawb tsis kam |
Kev tiv thaiv kev tsim kho
- Substrate compatibility: Sib sib zog nqus -textured PVC substrates yuav tsum tau nyob rau ntawm - qhov chaw kuaj ntawm daim ntawv thov nyiaj los tiv thaiv tsis txaus kev pab them nqi uas yuav txo tau khawb kuj.
- Cov khoom siv tsis sib xws: Khaws qhov curing - teeb nrug ntawm 10–15 cm kom paub meej tias muaj zog kho kom txaus.
- Cia & tuav: Khaws rau hauv qhov chaw txias, ntxoov ntxoo ntawm 5-35 degree. Lub neej txee yog 12 lub hlis tsis qhib; ib zaug qhib, siv tsis pub dhau 30 hnub.
Technical Specifications
|
Test Project |
Test Standards |
Txheem tus nqi |
Qhov sib txawv ntawm lwm cov txheej txheem UV |
|

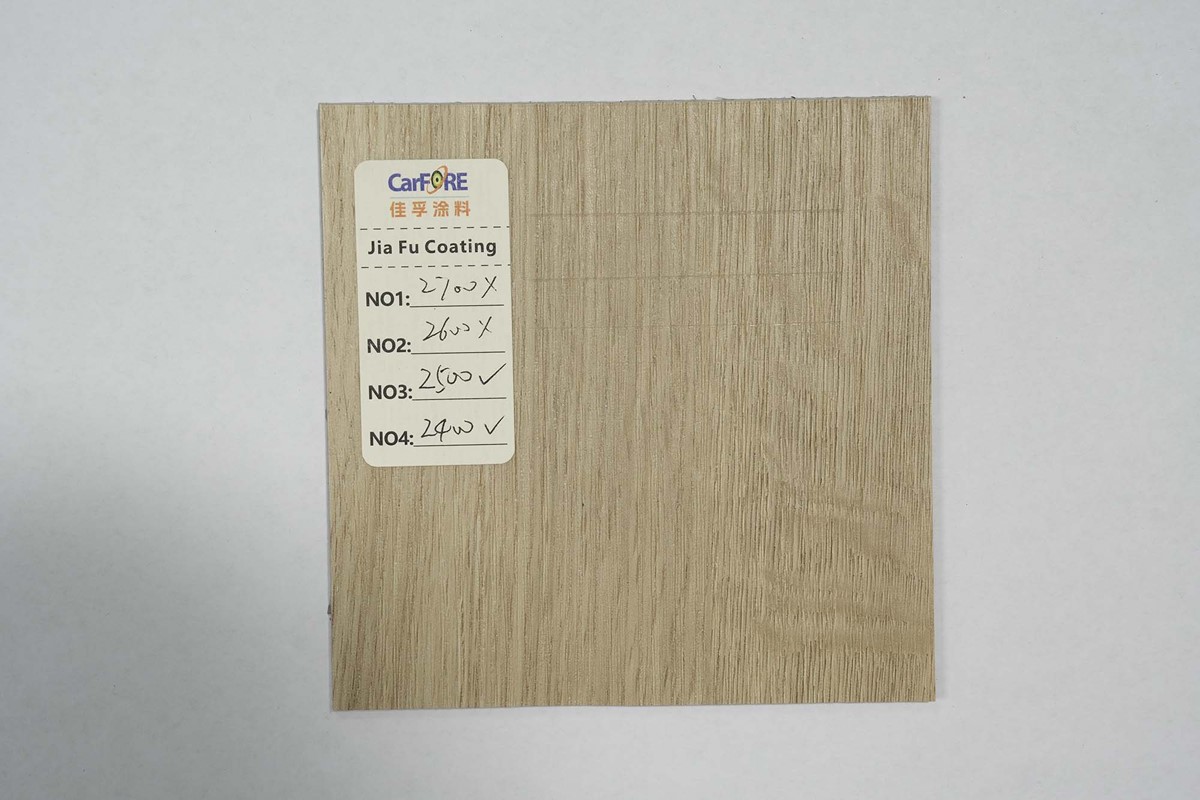

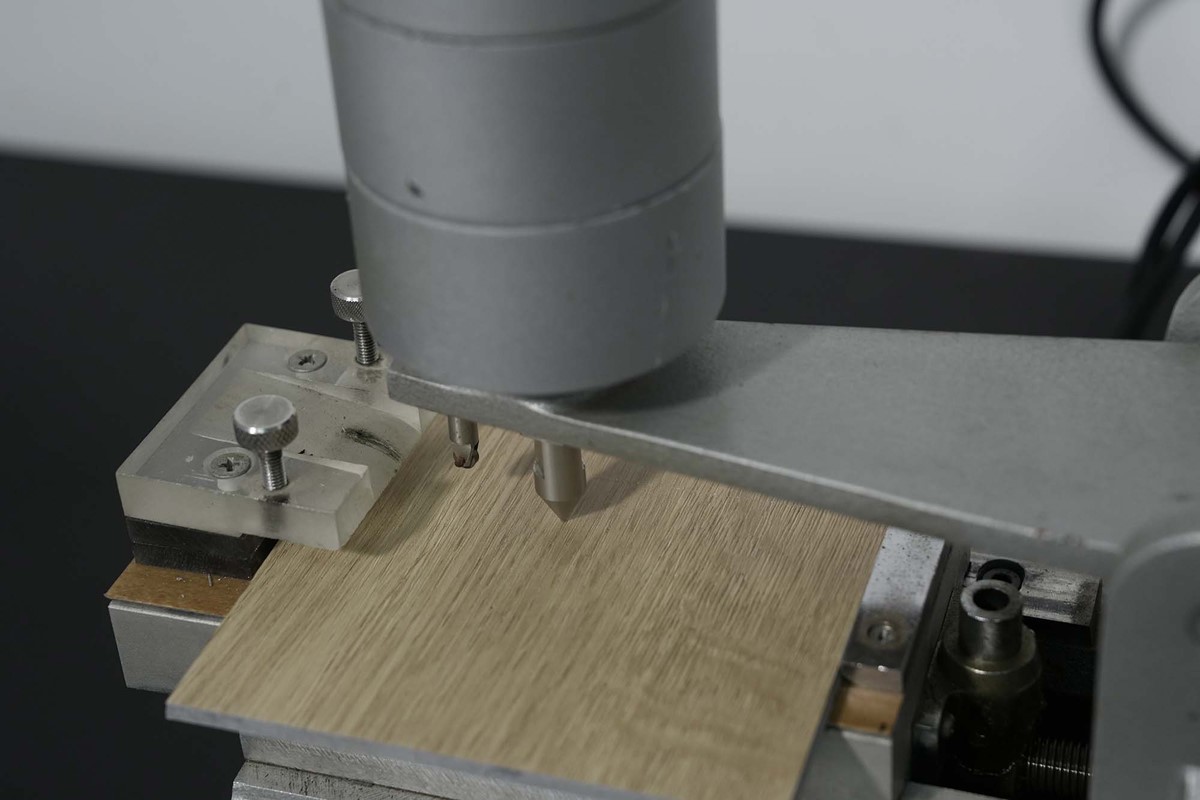

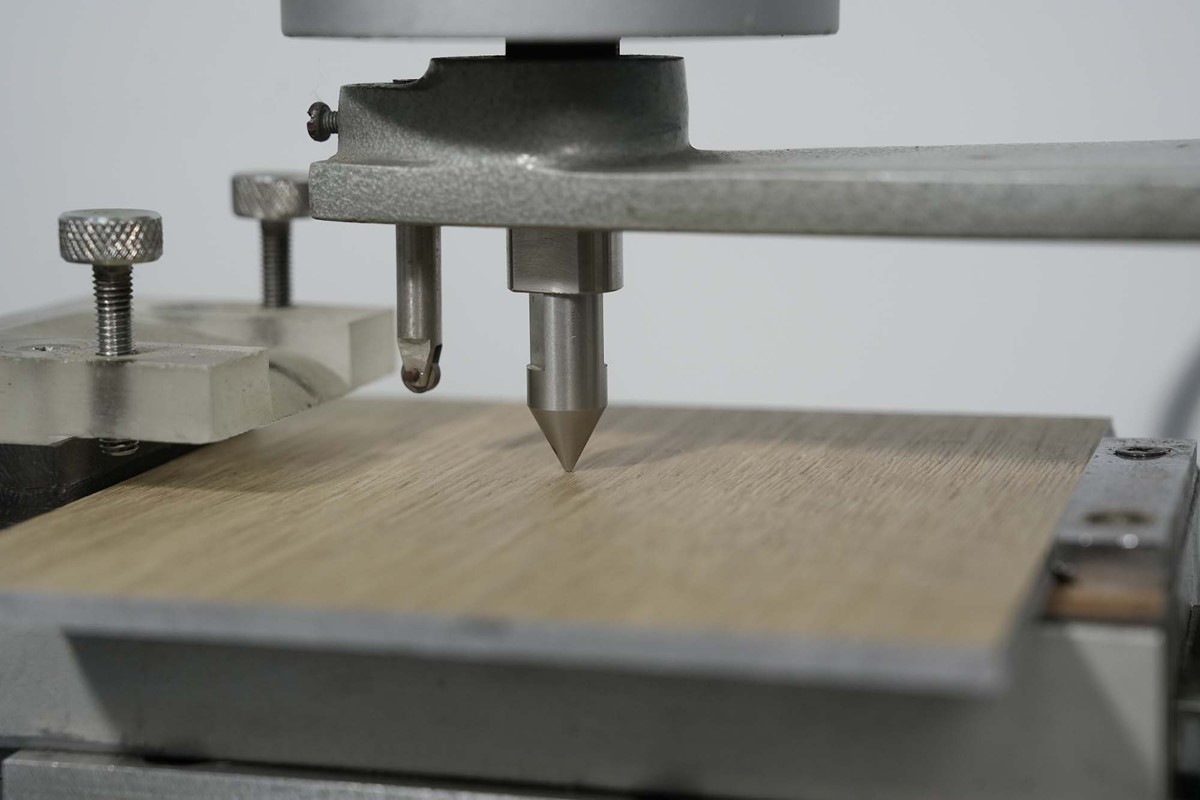

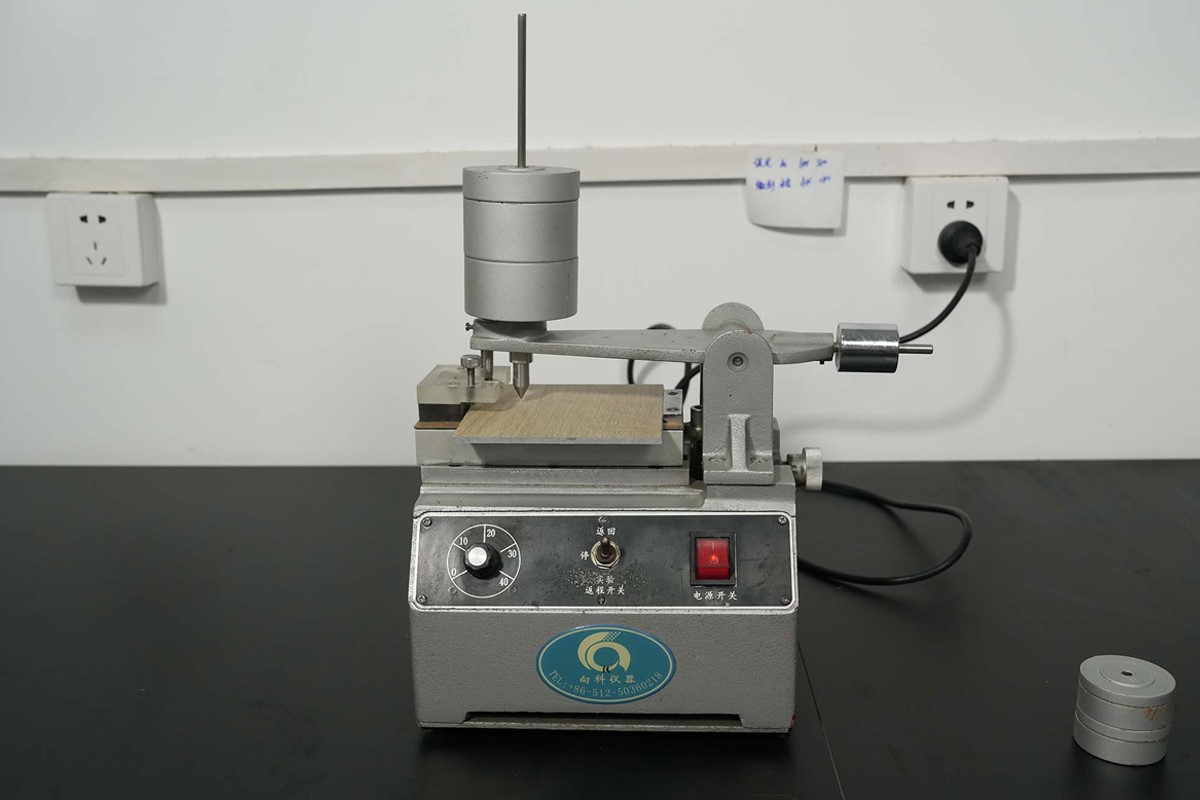

Scratch Resistance |
GB/T 9279-2007 |
Ntau tshaj lossis sib npaug li 2500 g |
Cov khoom lag luam nkaus xwb uas tau hais kom meej meej siab kos-tsis kam ntsuas |
|
Curing Zog (Topcoat) |
– |
470-780 mJ/cm² |
Siab dua li cov khoom lag luam feem ntau, txhim kho kev kho kom zoo ntawm khawb- txheej tiv thaiv |
|
Lub caij ntuj no Preheating kub |
– |
135-180 degree |
Optimized rau PVC qis-kub siv, tsis zoo li lwm yam khoom uas tsis muaj zog tsawg- kub compatibility |
|
Gloss |
GB/T 9754-2007 |
6-8 degree |
Matte zoo li haum rau pej xeem -qhov yuav tsum tau pom |
|
Adhesion |
GB/T 9286-1998 |
Qib 0 |
Tus qauv qhia kom ntseeg tau ntev - lub sij hawm adhesion ntawm PVC substrates |
|
Qib Yellowing (1000h) |
Xenon{0}}arc Aging Test |
3.5–4 |
Ntev -ntev los tiv thaiv- daj kev ua haujlwm kom muaj qhov zoo li hauv pem teb |
